Helen, meaning light, who is also a demigodess according Greek mythology. Advanced measurement solutions represented by scanners, using light in 3D measurement.
A structured light patterns – stripes, if you like call it Zebra is projected onto an object, when their distorsions are captured by cameras, from multiple angles. Angles between two cameras introduce triangulation principle (see Figure 1). Idea behind is, length of one side of triangle is known and also two of its angles, then length of other sides can be calculated.

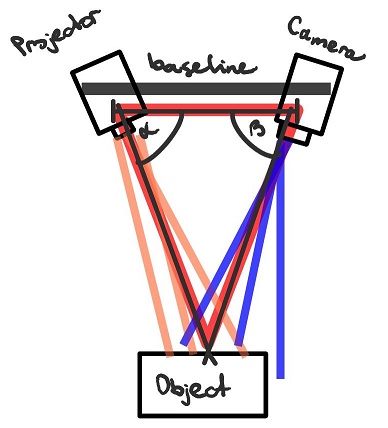

Figure 1: Triangulation principle of a 3D scanner based on white light
This “phototherapy” a la Helen, is perfect for large size objects and able to scan object all at once,
and with Polyworks universal 3D inspection software the whole measurement feels like a video game.
